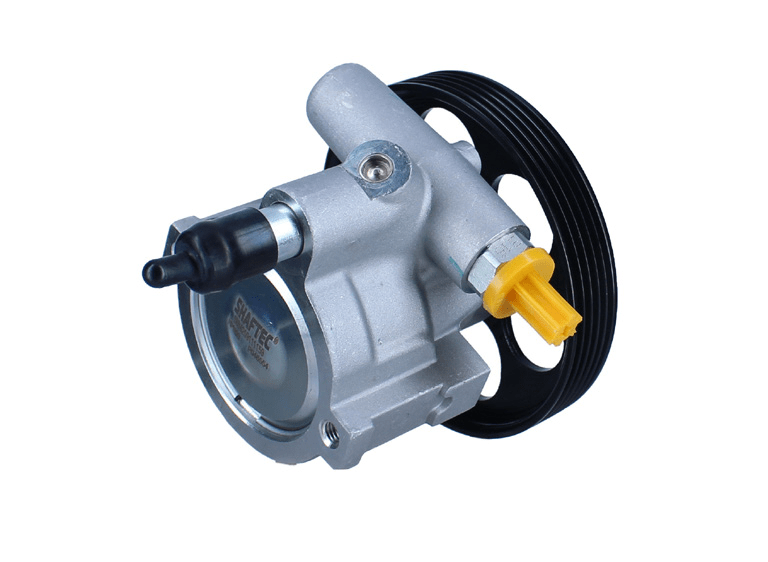

HP1020 / HP1119 / HP1238 Steering Pump Identification

HP1020

With 125mm Ø pressed on Belt Pulley, 5 Groove for steering manufacturer: SAGINAW.

HP1119

With 125mm Ø pressed on Belt Pulley, 6 Groove for steering manufacturer: SAGINAW

HP1238

Without Belt Pulley Star-form Adaptor with 3 mounting bores with internal thread, both sides 2 Thread bores for steering manufacturer: SAGINAW

NB: Vehicle Manufacturers tend to supply the body of the pump separately, so the OE numbers can cross to all 3 versions. Care should be taken in identifying the correct pump.
